CF1025BMB

10-inch, cast aluminium chassis, ferrite magnet mid/bass driver

Optimised for bass and mid/bass applications
Half-roll Elastomer surround enables greater Xmax and Xmech
Modified T-pole profile ensures improved Bl symmetry, for lower distortion performance
Glass-loaded paper cone with weather-resistant coating
Airflow vented magnet assembly for dynamic heat dispersion

Specifications

600W

Continuous power rating

92.5dB

Sensitivity

2.5in

Voice coil diameter

Nominal diameter

254mm / 10in

Power rating

300W

Continuous power rating

600W

Rated impedance

8Ω

Sensitivity

92.5dB

Frequency range

45-5000Hz

Chassis type

Cast aluminium

Magnet type

Ferrite

Magnet weight

1.42kg / 50oz

Voice coil diameter

64mm / 2.5in

Voice coil material

Round copper

Former material

Polyimide

Cone material

Glass loaded paper (weather-resistant)

Surround material

Elastomer

Suspension

Single

Gap height (H_g)

8mm / 0.31in

VC winding height (H_vc)

17.3mm / 0.68in

Parameters

346.36cm² / 53.69in²

40.9Hz

Mms

55.865g / 1.97oz

Qms

7.952

Qes

0.371

Qts

0.355

6.04Ω

Vas

46.1l / 1.63 ft³

15.28Tm

Rms

1.804mm/N

Le (at 1kHz)

1.15mH

Xmax

6.65mm / 0.26in

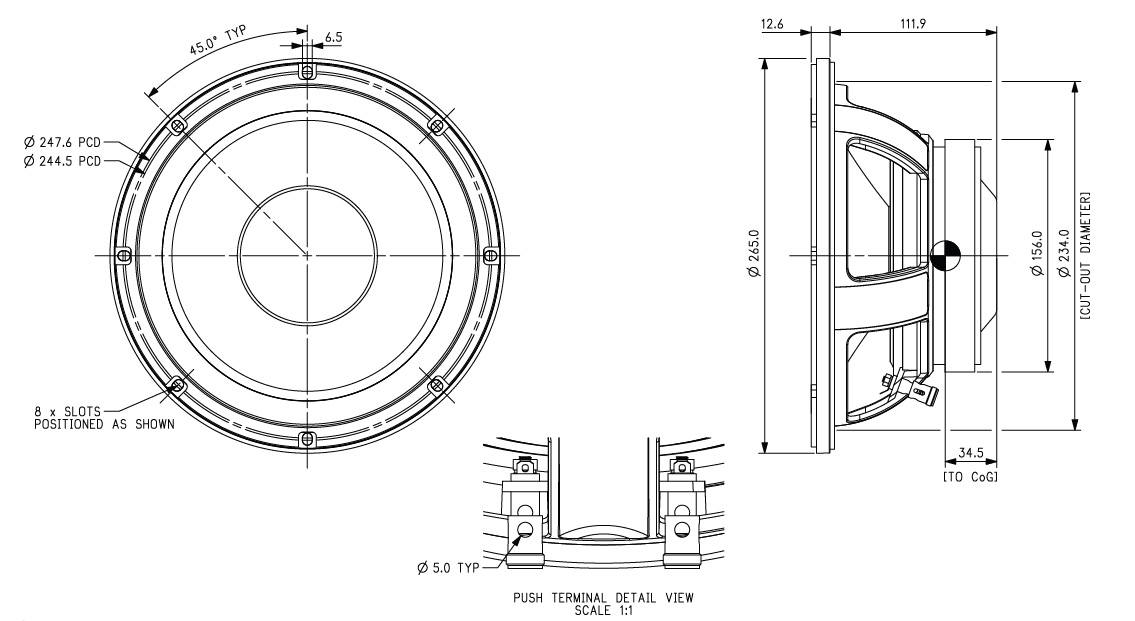

Mounting Information

Overall diameter

265mm / 10.43in

Overall depth

124.5mm / 4.9in

Cut-out diameter

233.8mm / 9.2in

Mounting hole dimensions

8x6.5mm / 0.31x0.26in

Number of mounting holes

Mounting hole PCD

244.5-247.5mm / 9.63-9.75in

Unit weight

4.3kg / 9.5lb

Packed Dimensions & Weight

Single pack size W x D x H

306mm x 306mm x 155mm / 12in x 12in x 6.1in

Single pack weight

5.5kg / 12.1lb

Multi pack qty

Multi pack size W x D x H

555mm x 520mm x 290mm / 21.9in x 20.5in x 11.4in

Multi pack weight

45kg / 99lb

Frequency Response and Impedance Curves

Topmost curve: Frequency response on axis | Secondary curve: Frequency response at 45° off axis

Power rating: Tested for two hours using a continuous, band-limited pink noise signal as per AES standard. Power calculated on minimum impedance. Loudspeaker tested in free air.

Continuous power rating: Defined as 3dB greater than the AES rating.

Sensitivity: Measured on axis at 1W, 1m in 2π anechoic environment.

Parameters: Measured after unit subjected to pre-conditioning signal.

Xmax: 0.5*(H_vc-H_g) + 0.25*H_g
