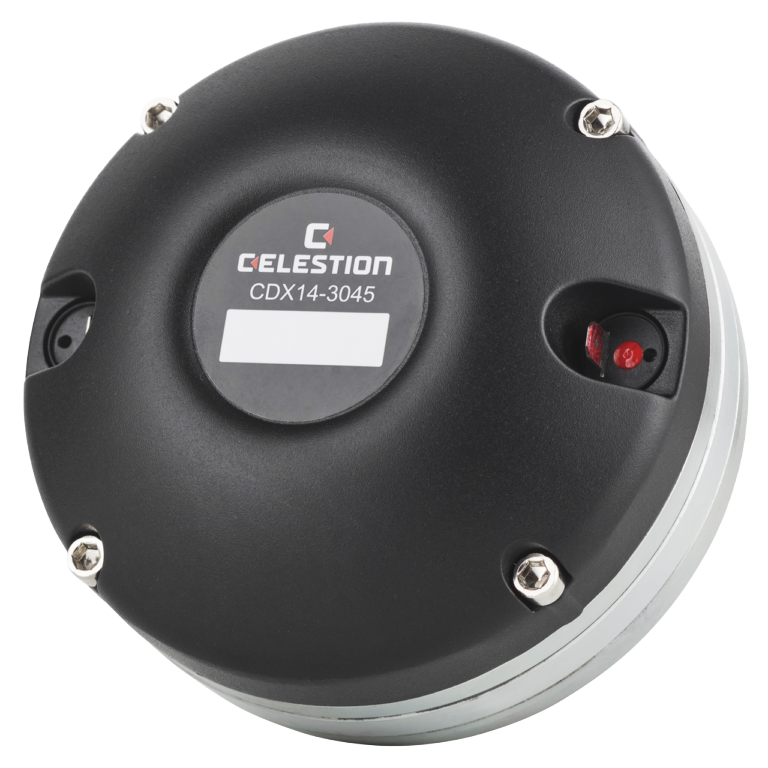

CDX14-3045
1.4-inch exit neodymium magnet compression driver
- Single piece titanium diaphragm and surround
- Enhanced surround shape for greater linearity
- High temperature polymer clamp ring minimises distortion
Specifications
240W
Continuous power rating
108dB
Sensitivity
3in
Voice coil diameter
Power rating
120W
Continuous power rating
240W
Rated impedance
8Ω
Sensitivity
108dB
Frequency range
500-20,000Hz
Recommended min. crossover (12dB/oct)
800Hz
Magnet type
Neodymium
Voice coil diameter
75mm / 3in
Voice coil material
Edgewound copper clad aluminium
Diaphragm material
Titanium
Surround material
Titanium
Mounting Information
Width
117mm / 4.6in
Depth
59mm / 2.3in
Fitting
Bolt (4 x M6 holes on 102mm/4in PCD)
Throat exit
35mm / 1.4in
Unit weight
2kg / 4.4lb
Packed Dimensions & Weight
Single pack size W x D x H
170mm x 140mm x 75mm / 6.7in x 5.5in x 3in
Single pack weight
2.2kg / 4.9lb
Frequency Response and Impedance Curves
Measured - Plane Wave Tube
Measured - Exponential Horn 90° x 40° radiation pattern
Power rating: Tested for two hours on plane wave tube using a continuous, band-limited pink noise signal as per AES standard. Power calculated on minimum impedance.
Continuous power rating: Defined as 3dB greater than the AES rating.
Sensitivity: Measured on axis at 1W, 1m, using typical horn, in 2π anechoic environment.
